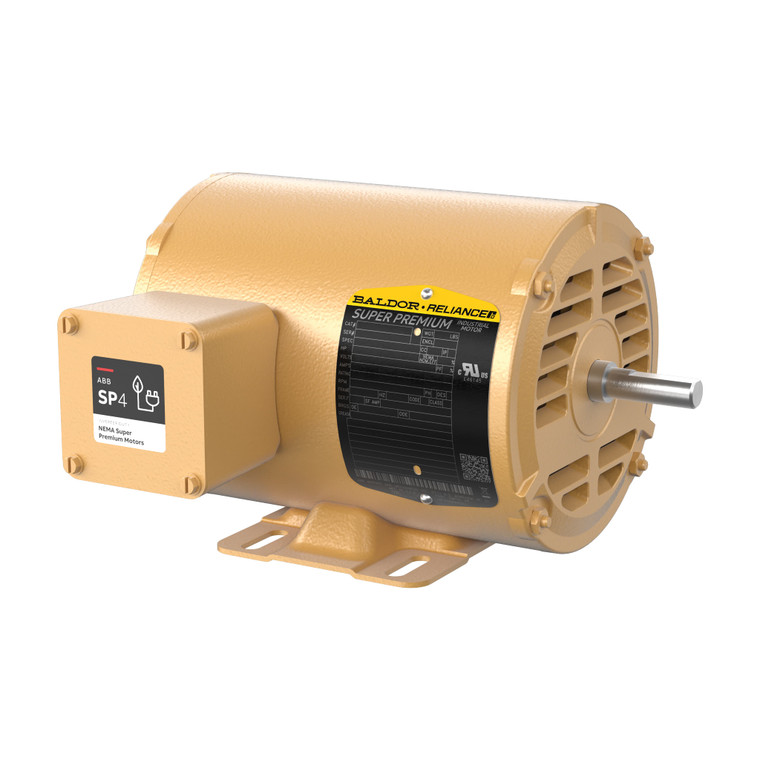

ABB Baldor-Reliance SPM30008 .33 HP 1140 RPM 48 ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance SPM30008 .33 HP 1140 RPM 48 ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
SPM30008
|
UPC:
781568586907
$658.13
Condition:
New
Current Stock:
Description
SPM30008
Baldor-Reliance .33 HP Three-Phase SP4 Super Premium Motor
.33HP,1140RPM,3PH,60HZ,48,3421M,OPEN,F1
.33 HP1140 RPM48 FrameODP230/460 V3-Phase

Specifications

Catalog NumberSPM30008
Output (HP).33
Speed (RPM)1140
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)0.70
Phase3
Frequency (Hz)60.00
Frame48
Frame MaterialSteel
EnclosureODP
NEMA Nominal Efficiency (%)75.5
Service Factor1.15
Insulation ClassF
Motor Type3421M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)9.75
Duty RatingCONT
Ambient Temperature (C)40
InverterSuitable for inverter use (NEMA MG1 Part 31.4.4.2)

Application & Design Notes

The SPM30008 is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated .33 HP at 1140 RPM in a 48 steel frame with a ODP enclosure. SP4 Super Premium efficiency (75.5% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the SPM30008, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
.33 HP
Speed:
1140 RPM
Poles:
6
Voltage:
230/460 V
Full Load Amps:
0.70 A
Phase:
3
Frequency:
60.00 Hz
Frame:
48
Enclosure:
ODP
Efficiency:
75.5%
Service Factor:
1.15
Insulation Class:
F
