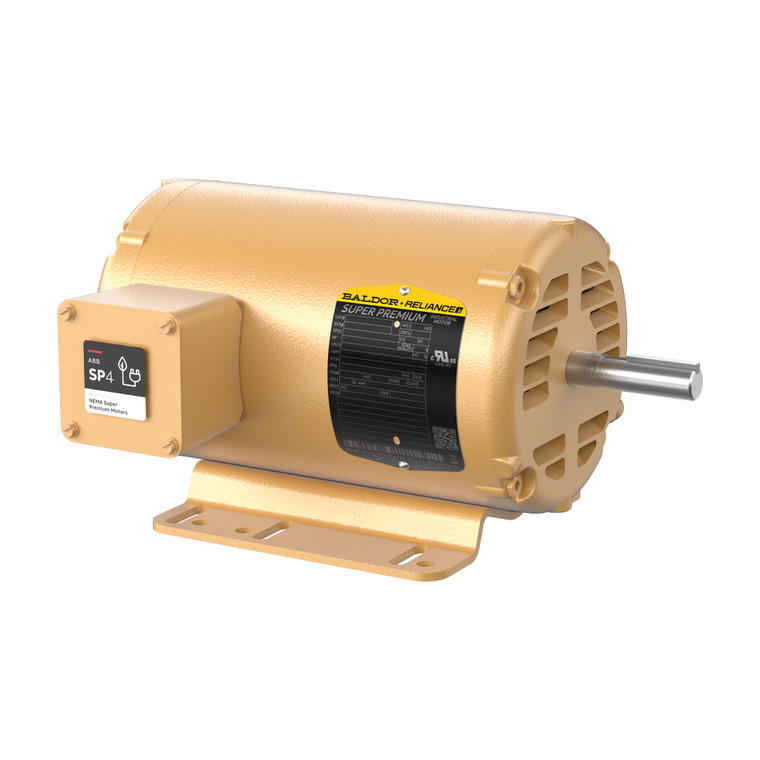

ABB Baldor-Reliance SPM31111 .75 HP 3450 RPM 56H ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance SPM31111 .75 HP 3450 RPM 56H ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
SPM31111
|
UPC:
781568587010
$639.51
Condition:
New
Current Stock:
Description
SPM31111
Baldor-Reliance .75 HP Three-Phase SP4 Super Premium Motor
.75HP,3450RPM,3PH,60HZ,56H,3424M,ODP,F1
.75 HP3450 RPM56H FrameODP230/460 V3-Phase

Specifications

Catalog NumberSPM31111
Output (HP).75
Speed (RPM)3450
Synchronous Speed (RPM)3600
Number of Poles2
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)1.00
Phase3
Frequency (Hz)60.00
Frame56H
Frame MaterialSteel
EnclosureODP
NEMA Nominal Efficiency (%)80
Service Factor1.15
Insulation ClassF
Motor Type3424M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)11.75
Duty RatingCONT
Ambient Temperature (C)40
InverterSuitable for inverter use (NEMA MG1 Part 31.4.4.2)

Application & Design Notes

The SPM31111 is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated .75 HP at 3450 RPM in a 56H steel frame with a ODP enclosure. SP4 Super Premium efficiency (80% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the SPM31111, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
.75 HP
Speed:
3450 RPM
Poles:
2
Voltage:
230/460 V
Full Load Amps:
1.00 A
Phase:
3
Frequency:
60.00 Hz
Frame:
56H
Enclosure:
ODP
Efficiency:
80%
Service Factor:
1.15
Insulation Class:
F
