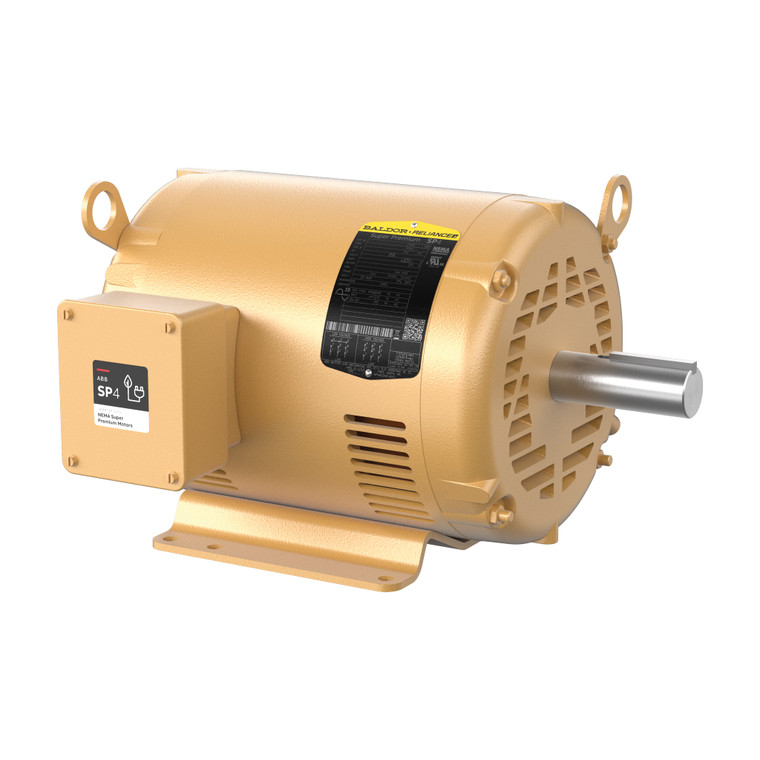

ABB Baldor-Reliance SPM3309T 5 HP 1160 RPM 215T Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance SPM3309T 5 HP 1160 RPM 215T Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
SPM3309T
|
UPC:
781568587317
$1,933.91
Condition:
New
Current Stock:
Description
SPM3309T
Baldor-Reliance 5 HP Three-Phase SP4 Super Premium Motor
5HP,1160RPM,3PH,60HZ,215T,3744M,OPSB,F1
5 HP1160 RPM215T Frame230/460 V3-Phase

Specifications

Catalog NumberSPM3309T
Output (HP)5
Speed (RPM)1160
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)7.30
Phase3
Frequency (Hz)60.00
Frame215T
Frame MaterialSteel
NEMA Nominal Efficiency (%)90.2
Service Factor1.15
Insulation ClassF
Motor Type3744M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)17.45
Duty RatingCONT
Ambient Temperature (C)40
InverterSuitable for inverter use (NEMA MG1 Part 31.4.4.2)

Application & Design Notes

The SPM3309T is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated 5 HP at 1160 RPM in a 215T steel frame with a enclosure. SP4 Super Premium efficiency (90.2% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the SPM3309T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
5 HP
Speed:
1160 RPM
Poles:
6
Voltage:
230/460 V
Full Load Amps:
7.30 A
Phase:
3
Frequency:
60.00 Hz
Frame:
215T
Efficiency:
90.2%
Service Factor:
1.15
Insulation Class:
F
