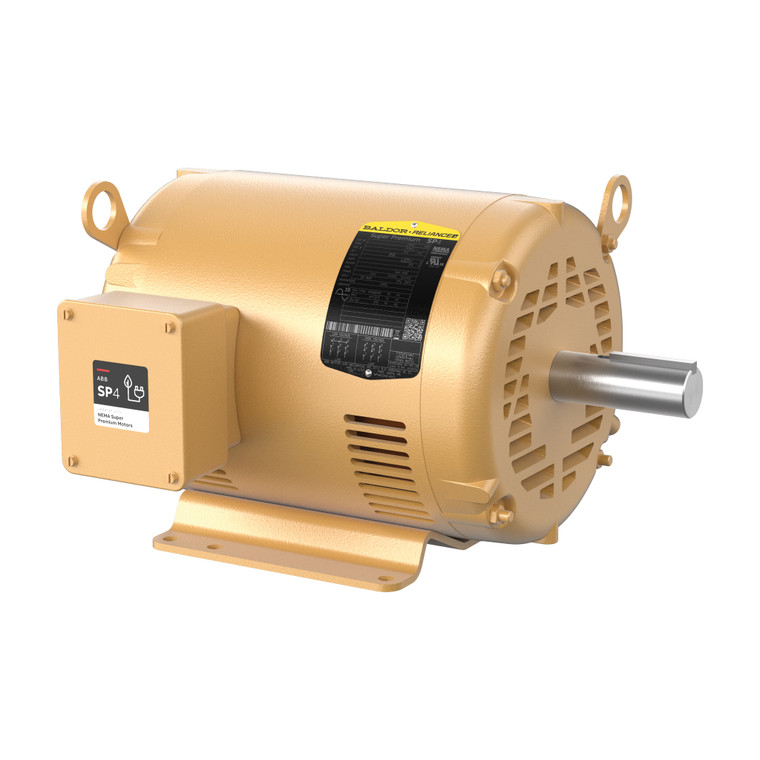

ABB Baldor-Reliance SPM3312T 10 HP 3500 RPM 213T Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance SPM3312T 10 HP 3500 RPM 213T Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
SPM3312T
|
UPC:
781568587348
$1,919.34
Condition:
New
Current Stock:
Description
SPM3312T
Baldor-Reliance 10 HP Three-Phase SP4 Super Premium Motor
10HP,3500RPM,3PH,60HZ,213T,3736M,OPSB,F1
10 HP3500 RPM213T Frame230/460 V3-Phase

Specifications

Catalog NumberSPM3312T
Output (HP)10
Speed (RPM)3500
Synchronous Speed (RPM)3600
Number of Poles2
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)11.50
Phase3
Frequency (Hz)60.00
Frame213T
Frame MaterialSteel
NEMA Nominal Efficiency (%)91.7
Service Factor1.15
Insulation ClassF
Motor Type3736M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)17.45
Duty RatingCONT
Ambient Temperature (C)40
InverterSuitable for inverter use (NEMA MG1 Part 31.4.4.2)

Application & Design Notes

The SPM3312T is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated 10 HP at 3500 RPM in a 213T steel frame with a enclosure. SP4 Super Premium efficiency (91.7% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the SPM3312T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
10 HP
Speed:
3500 RPM
Poles:
2
Voltage:
230/460 V
Full Load Amps:
11.50 A
Phase:
3
Frequency:
60.00 Hz
Frame:
213T
Efficiency:
91.7%
Service Factor:
1.15
Insulation Class:
F
