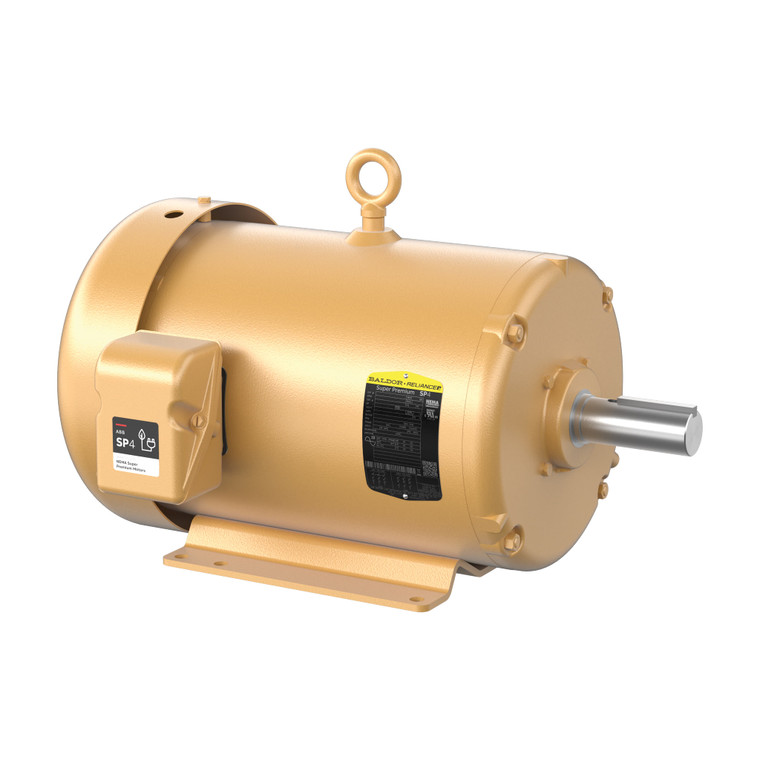

ABB Baldor-Reliance SPM3910T 15 HP 1770 RPM 254T TEFC Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance SPM3910T 15 HP 1770 RPM 254T TEFC Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
SPM3910T
|
UPC:
781568587904
$3,082.07
Condition:
New
Current Stock:
Description
SPM3910T
Baldor-Reliance 15 HP Three-Phase SP4 Super Premium Motor
15HP,1770RPM,3PH,60HZ,254T,3958M,TEFC,F1
15 HP1770 RPM254T FrameTEFC230/460 V3-Phase

Specifications

Catalog NumberSPM3910T
Output (HP)15
Speed (RPM)1770
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)18.3
Phase3
Frequency (Hz)60.00
Frame254T
Frame MaterialSteel
EnclosureTEFC
NEMA Nominal Efficiency (%)93.6
Service Factor1.15
Insulation ClassF
Motor Type3958M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)24.56
Duty RatingCONT
Ambient Temperature (C)40
InverterSuitable for inverter use (NEMA MG1 Part 31.4.4.2)

Application & Design Notes

The SPM3910T is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated 15 HP at 1770 RPM in a 254T steel frame with a TEFC enclosure. SP4 Super Premium efficiency (93.6% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the SPM3910T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
15 HP
Speed:
1770 RPM
Poles:
4
Voltage:
230/460 V
Full Load Amps:
18.3 A
Phase:
3
Frequency:
60.00 Hz
Frame:
254T
Enclosure:
TEFC
Efficiency:
93.6%
Service Factor:
1.15
Insulation Class:
F
