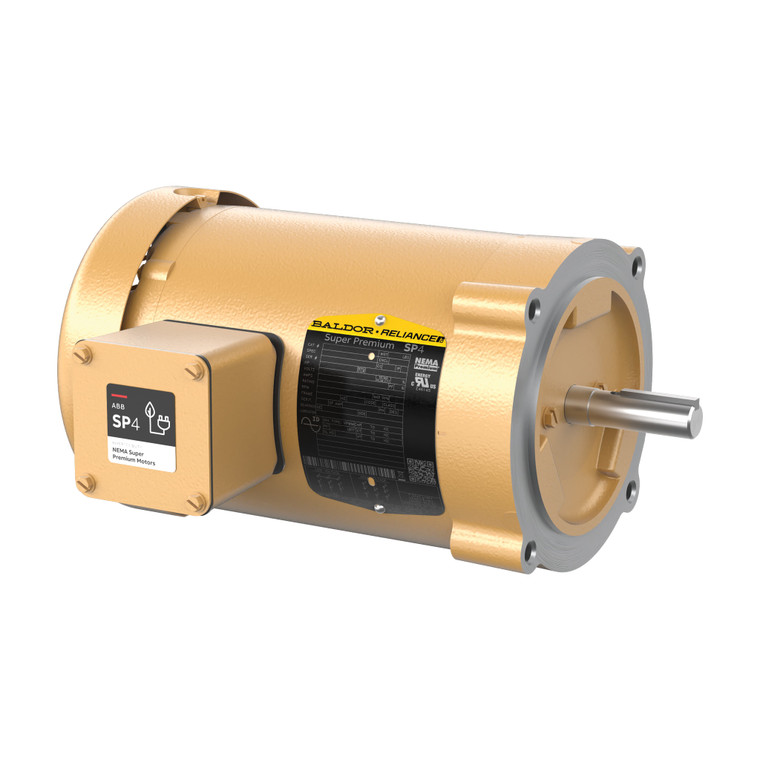

ABB Baldor-Reliance VSPM3531 .25 HP 1150 RPM 56C TEFC Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance VSPM3531 .25 HP 1150 RPM 56C TEFC Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
VSPM3531
|
UPC:
781568600412
$668.40
Condition:
New
Current Stock:
Description
VSPM3531
Baldor-Reliance .25 HP Three-Phase SP4 Super Premium Motor
.25HP,1150RPM,3PH,60HZ,56C,3420M,TEFC,F1
.25 HP1150 RPM56C FrameTEFC230/460 V3-Phase

Specifications

Catalog NumberVSPM3531
Output (HP).25
Speed (RPM)1150
Synchronous Speed (RPM)1200
Number of Poles6
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)0.65
Phase3
Frequency (Hz)60.00
Frame56C
Frame MaterialSteel
EnclosureTEFC
NEMA Nominal Efficiency (%)74
Service Factor1.15
Insulation ClassF
Motor Type3420M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)12.84
Duty RatingCONT
Ambient Temperature (C)40
InverterNot for inverter use

Application & Design Notes

The VSPM3531 is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated .25 HP at 1150 RPM in a 56C steel frame with a TEFC enclosure. SP4 Super Premium efficiency (74% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Not rated for inverter use. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VSPM3531, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
.25 HP
Speed:
1150 RPM
Poles:
6
Voltage:
230/460 V
Full Load Amps:
0.65 A
Phase:
3
Frequency:
60.00 Hz
Frame:
56C
Enclosure:
TEFC
Efficiency:
74%
Service Factor:
1.15
Insulation Class:
F
