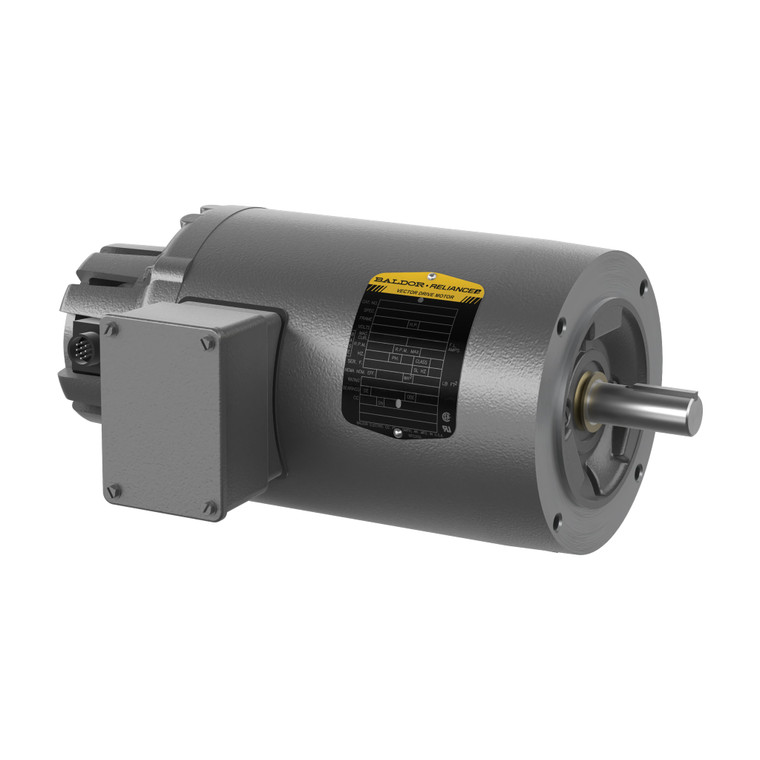

ABB Baldor-Reliance VZDNM3558T 2 HP 1800 RPM 145TC TENV V*S Master Vector Duty Motor
ABB Baldor-Reliance
$1,630.00
VZDNM3558T
Baldor-Reliance 2 HP V*S Master Vector Duty Motor
2HP, 1800RPM base, 3PH, 230/460V, 145TC, TENV
2 HP1800 RPM base145TC FrameVector Duty230/460 VTENV
Specifications
| Catalog Number | VZDNM3558T |
| Output (HP) | 2 |
| Base Speed (RPM) | 1800 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V) | 230/460 |
| Full Load Amps (A) | 5.6/2.8 |
| Phase | 3 |
| Frequency (Hz) | 60 |
| Duty | Vector Duty / Inverter Duty |
| Frame | 145TC |
| Frame Material | Steel |
| Enclosure | TENV (Totally Enclosed Non-Ventilated) |
| NEMA Nominal Efficiency (%) | 86.5 % |
| Power Factor | 77 |
| Service Factor | 1.00 |
| Insulation Class | H |
| NEMA Design | A |
| Ambient Temperature | 40 °C |
| Overall Length | 17.15 in |
| Mounting | F1 |
| Shaft Grounding | Shaft Grounding |
| Product Line | V*S Master® RS, Vector Duty |
Application & Design Notes
The VZDNM3558T is a Baldor-Reliance V*S Master RS vector duty motor rated 2 HP with a 1800 RPM base speed in a 145TC rolled steel frame. It is designed for variable frequency drive and vector control operation, holding rated torque across a wide constant-torque speed range. The totally enclosed non-ventilated (TENV) construction cools without a shaft-driven fan, so cooling does not fall off at low speed, which suits sustained low-speed and near-zero-speed duty. Rated 86.5 % nominal efficiency at 1.00 service factor with Class H insulation, on 230/460V three phase. Typical uses include conveyors, indexing and positioning, winders and tension control, and any application needing precise, adjustable speed with steady torque.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance V*S Master and vector duty motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, drive pairing, or application help on the VZDNM3558T, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 2 HP
- Base Speed:
- 1800 RPM
- Poles:
- 4
- Voltage:
- 230/460 V
- Full Load Amps:
- 5.6/2.8 A
- Phase:
- 3
- Duty:
- Vector Duty
- Frame:
- 145TC
- Enclosure:
- TENV
- Efficiency:
- 86.5%
- Service Factor:
- 1.00
- Insulation Class:
- H
