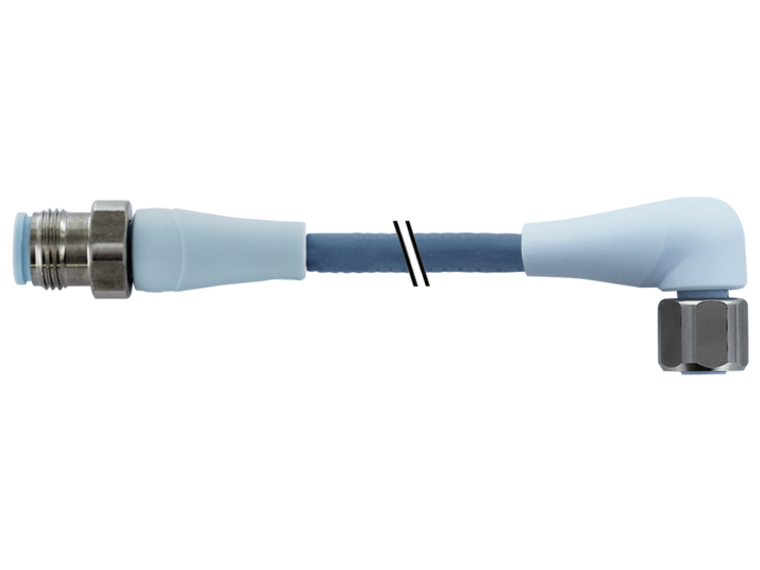

Baumer CAM12.A4-11271241 M12 A-Coded 4-Pin Connector
BaumerBaumer CAM12.A4-11271241 M12 A-Coded 4-Pin Connector
The Baumer CAM12.A4-11271241 is an M12 connection product from the Baumer CAM12 family with an A-coded 4-pin connection. The CAM12 family covers molded connection cables, extension cables, and field wireable connectors for M12 sensor and actuator connections.
A-coded M12 is the standard interface for sensors, actuators, valves, and I/O modules, and is also used for DeviceNet, CANopen, and IO-Link connections.
Specifications
| Brand | Baumer |
| Part Number | CAM12.A4-11271241 |
| Product Type | Connector |
| Connector | M12 |
| Coding | A-Coded |
| Number of Pins | 4 |
Refer to the Baumer datasheet for cable length, jacket material, connector orientation, and the full pinout before ordering.
Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
- Operating voltage (only UL listed):
- 30 V AC/DC
- Nominal voltage:
- 300 V AC
- Contact resistance:
- max. 30 mOhm
- Operating current per contact:
- max. 4 A
- Head A: Degree of protection:
- IP65, IP68, IP69K
- Head B: Degree of protection:
- IP65, IP68, IP69K
- Bending radius (mobile):
- min. 10 × outer diameter
- Bending radius (fixed):
- min. 5 × outer diameter
- No. of bending cycles (C-track):
- approx. 4000000 Cycles
- Torsion speed:
- max. 35 cycles/min
- Torsion stress in °:
- ± 180 °/m
- No. of torsion cycles:
- approx. 2000000 Cycles
- Acceleration (C-track):
- max. 10 m/s²
- Travel speed (C-track):
- max. 3 m/s
- Datasheet:
- View
- Connector:
- M12
- Coding:
- A-Coded
- Pins:
- 4
