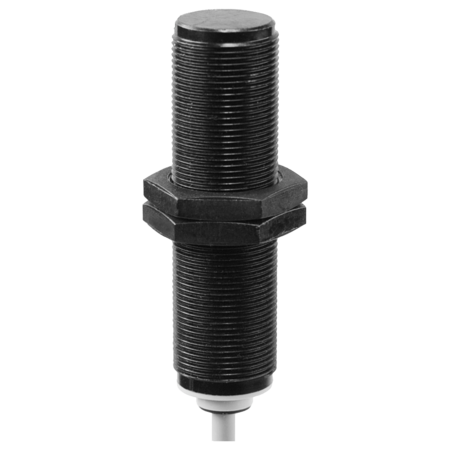

Baumer CFAK 18N1100 11001673 is a cylindrical threaded proximity sensor with a nominal sensing distance of 5 mm and non-flush mounting. It features a yellow LED output indicator and operates without sensitivity adjustment. This sensor can detect non-conductive media and is capable of level detection through containers and direct contact with liquids. It supports object detection including bulk goods, with a voltage supply range of 10 to 30 VDC and a maximum current consumption of 20 mA. The output circuit is an NPN make function (NO) with an output current of 200 mA and a voltage drop of less than 1.5 VDC. It has a switching frequency of 50 Hz and includes short circuit and reverse polarity protection. The housing is made of PBT, measures 18 mm in diameter, and is 63.5 mm long with a 2-meter cable connection. It operates within a temperature range of -25 to +75 °C and offers IP 67/65 protection for the sensing face and sensor body respectively.
- Nominal sensing distance Sn:
- 5 mm
- Mounting type:
- Non-flush
- GND electrode:
- No
- Temperature drift:
- ± 15 % (0 ... +70 °C)
- Sensitivity adjustment:
- No
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- Yes
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- PBT
- Dimension:
- 18 mm
- Housing length:
- 63.5 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67/65 (sensing face/sensor)
