Baumer CFAK 18N3200 11001669

Baumer CFAK 18N3200 11001669

Baumer
SKU:
11001669
Availability:
Contact us to confirm availability and lead times.
$419.40
Condition:
New
Current Stock:
Description

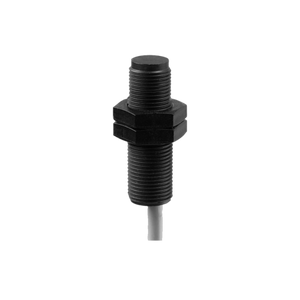

Baumer CFAK 18N3200 11001669 is a non-flush, cylindrical threaded proximity sensor with a nominal sensing distance adjustable from 2 to 15 mm. It features a potentiometer for sensitivity adjustment and an LED yellow output indicator. This sensor operates on a 10 to 30 VDC supply, with a maximum current consumption of 20 mA and an output current of 200 mA. It includes NPN break function output circuitry and supports a switching frequency of 50 Hz. The sensor offers short circuit and reverse polarity protection, and is designed for contactless detection of non-conductive media, including fill level detection through containers and direct contact with liquids. The housing is made of PBT, measures 18 mm in diameter and 63.5 mm in length, and is connected via a 2-meter cable. It operates within a temperature range of -25 to +75 °C and is rated IP 67/65 for protection against dust and water ingress.
Additional Information
Nominal sensing distance Sn:
15 mm
Nominal sensing distance Sn adjustable:
2 … 15 mm
Mounting type:
Non-flush
GND electrode:
No
Temperature drift:
± 15 % (+10 ... +70 °C)
Sensitivity adjustment:
Potentiometer, 12 turn
Output indicator:
LED yellow
Measurement type:
Contactless
Detection of non-conductive media:
Yes
Fill level detection through container:
Yes
Liquids in direct contact:
Yes
Object detection / bulk goods:
YesVoltage supply range +Vs=10 … 30 VDC
Current consumption max. (no load):
20 mA
Output circuit:
NPN break function (NC)
Output current:
200 mA
Voltage drop Vd:
<1.5 VDC
Switching frequency:
50 Hz
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Housing material:
PBT
Dimension:
18 mm
Housing length:
63.5 mm
Connection types:
Cable, L=2 m
Operating temperature:
-25 … +75 °C
Protection class:
IP 67/65 (sensing face/sensor)
Datasheet:
View
