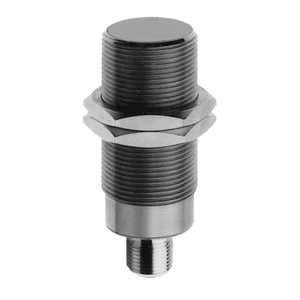

Baumer CFAM 30N1600 10119708 is a cylindrical threaded proximity sensor with a nominal sensing distance of 15 mm, adjustable from 4 to 15 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% between +10 and +70 °C. The sensor offers sensitivity adjustment via an 18-turn potentiometer and includes a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers without direct contact with liquids. It supports object detection in bulk goods and operates with a voltage supply range of 10 to 30 VDC, consuming a maximum of 20 mA with no load. The output circuit is an NPN make function (NO) with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, measures 30 mm in diameter, and is 71 mm long. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. It is rated IP 65 for protection against dust and water ingress. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_CFAM-30N1600_EN_20230331_DS.pdf?mediaPK=9065649373214).
- Nominal sensing distance Sn:
- 15 mm
- Nominal sensing distance Sn adjustable:
- 4 15 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 18 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 71 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
