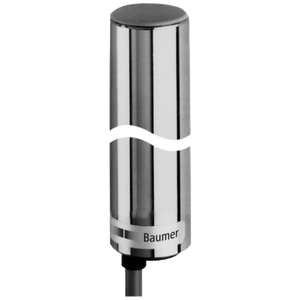

Baumer CFBM 20P1600 10242153

Baumer
SKU:
10242153
$449.22
(No reviews yet) Write a Review
Condition:
New
Current Stock:
The Baumer CFBM 20P1600 10242153 is a flush-mounted, cylindrical capacitive sensor with a nominal sensing distance of 10 mm, adjustable from 2 to 10 mm. It features a brass nickel-plated housing, measuring 20 mm in diameter and 79.5 mm in length. This sensor is equipped with a potentiometer for sensitivity adjustment, a yellow LED output indicator, and can detect non-conductive media and bulk goods without direct contact with liquids. It operates on a 10 to 30 VDC supply, with a maximum current consumption of 20 mA and an output current of 200 mA. The sensor includes short circuit and reverse polarity protection, operates within a temperature range of -25 to +75 °C, and is rated IP 65 for protection against dust and water. Ideal for fill level detection through containers, it offers a switching frequency of 50 Hz and a voltage drop of less than 2.5 VDC.
Nominal sensing distance Sn:
10 mm
Nominal sensing distance Sn adjustable:
2 … 10 mm
Mounting type:
Flush
GND electrode:
Yes
Temperature drift:
± 15 % (+10 ... +70 °C)
Sensitivity adjustment:
Potentiometer, 18 turn
Output indicator:
LED yellow
Measurement type:
Contactless
Detection of non-conductive media:
Yes
Fill level detection through container:
Yes
Liquids in direct contact:
No
Object detection / bulk goods:
YesVoltage supply range +Vs=10 … 30 VDC
Current consumption max. (no load):
20 mA
Output circuit:
PNP make function (NO)
Output current:
200 mA
Voltage drop Vd:
<2.5 VDC
Switching frequency:
50 Hz
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical smooth
Housing material:
Brass nickel plated
Dimension:
20 mm
Housing length:
79.5 mm
Connection types:
Cable, L=2 m
Operating temperature:
-25 … +75 °C
Protection class:
IP 65
Datasheet:
View
