Description

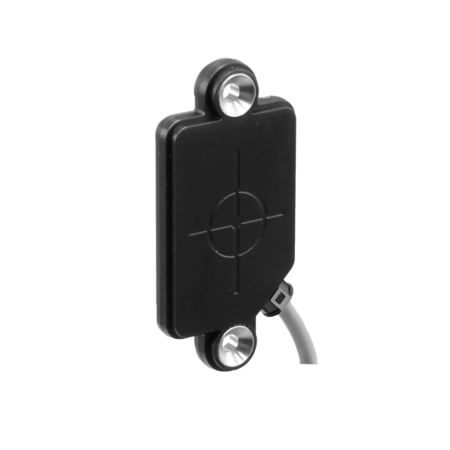

The Baumer CFDK 25G1125/LN1 11050682 is a flush-mounted, contactless capacitive sensor with a nominal sensing distance of 2 mm. It features a red LED output indicator and operates without sensitivity adjustment or GND electrode. Designed for fill level detection through containers, it does not detect non-conductive media or liquids in direct contact. The sensor supports a voltage supply range of 10 to 30 VDC, consumes a maximum of 15 mA with no load, and offers an output function of Active high with a push-pull output circuit. It can handle an output current of 100 mA and has a voltage drop of less than 3 VDC. The switching frequency is 35 Hz, and it includes short circuit and reverse polarity protection. The rectangular housing is made of PA 12, measuring 25 mm in width, 52.4 mm in length, and 6 mm in depth, with a PVC cable connection of 3 x 0.14, 2 m. It operates within a temperature range of -25 to +75 °C and has an IP 65 protection class.
