Description

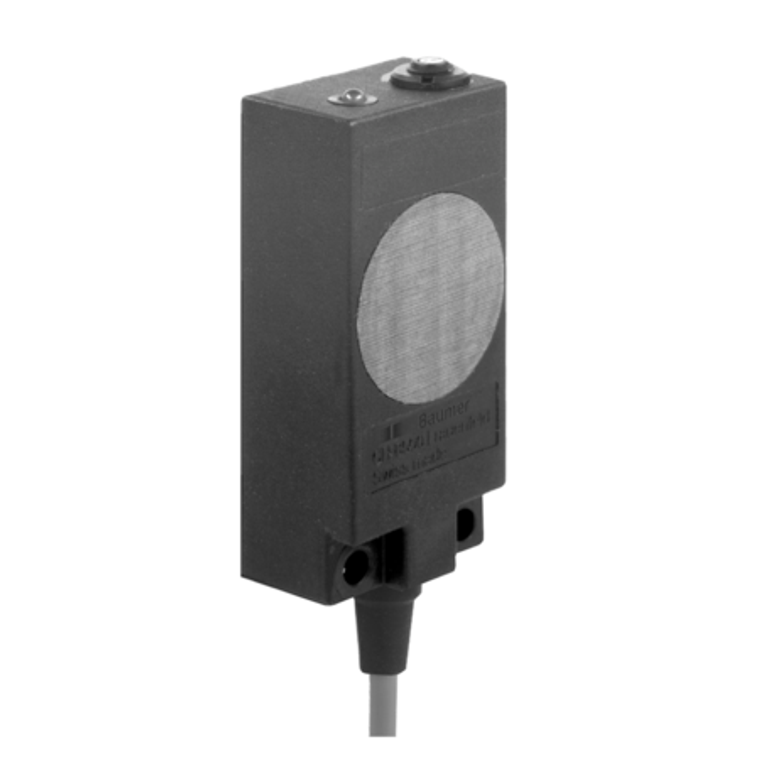

The Baumer CFDK 30N1600 10119716 is a flush-mounted capacitive sensor with a nominal sensing distance of 15 mm, adjustable from 4 to 15 mm. It features a GND electrode and offers a temperature drift of ±15% within a temperature range of +10 to +70 °C. The sensor is equipped with a 15-turn potentiometer for sensitivity adjustment and a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers, though it is not intended for liquids in direct contact. It supports object detection including bulk goods, operates on a voltage supply range of 10 to 30 VDC, and consumes a maximum of 20 mA with no load. The output circuit is an NPN make function (NO) with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The sensor's rectangular housing is made of PBT, measures 30 mm in width, and has a length of 65 mm. It connects via a 2-meter cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 65 rated, indicating a high level of protection against dust and water.
