Description

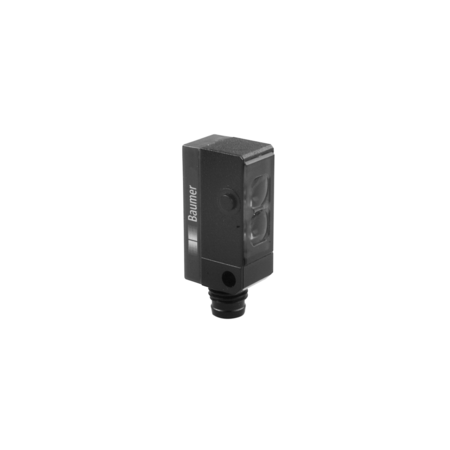

Baumer FHDK 10G5120/S35A 10160914 is a background suppression photoelectric sensor with a sensing distance of 30 mm ±2 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor uses a pulsed red LED light source with a wavelength of 660 nm and has a response time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 18 mA and a maximum of 25 mA. The output function can be set to light or dark operate, and it includes a push-pull output circuit with a maximum output current of 50 mA. The sensor is equipped with short circuit and reverse polarity protection. Its compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14.7 mm in depth, with a housing made of plastic (ASA) and a PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures ranging from -25 to +65 °C.
