Description

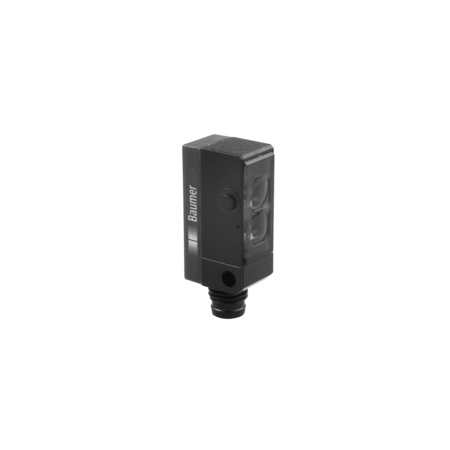

The Baumer FHDK 10G5122/S35A 10160916 is a background suppression photoelectric sensor with a sensing distance of 80 mm ±8 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor uses a pulsed red LED light source with a wavelength of 660 nm and boasts a quick response and release time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 18 mA and a maximum of 25 mA. The output function can operate in light or dark conditions, and it includes a push-pull output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14.7 mm in depth, with a housing made of ASA plastic and PMMA optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water ingress, suitable for operating temperatures ranging from -25 to +65 °C.
