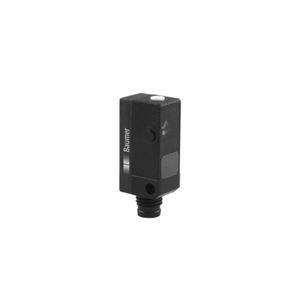

The Baumer FHDK 10N5160/S35A 11003342 is a high-performance sensor designed for glass detection with background suppression capabilities. It features a sensing distance of 10 to 30 mm and a sensing range of 3 to 30 mm at maximum distance. The sensor is equipped with a mechanical, 5-turn adjustment for sensing distance, and includes a flashing light indicator for alignment or soiled lens detection. It utilizes a pulsed red LED light source with a wavelength of 660 nm and offers a quick response time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 20 mA and a maximum of 30 mA. It includes both light and dark operating modes, an NPN output circuit, and supports an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a housing made of ASA plastic and a PMMA front optics. It connects via an M8 4-pin connector and is rated IP67 for protection against dust and water ingress, making it suitable for a wide range of industrial applications. The sensor operates effectively in temperatures ranging from -25 to +65 °C.
- Type:
- Background suppression
- Version:
- For glass detection
- Sensing distance Tw:
- 10 30 mm
- Sensing range Tb (at Tw max.):
- 3 30 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
