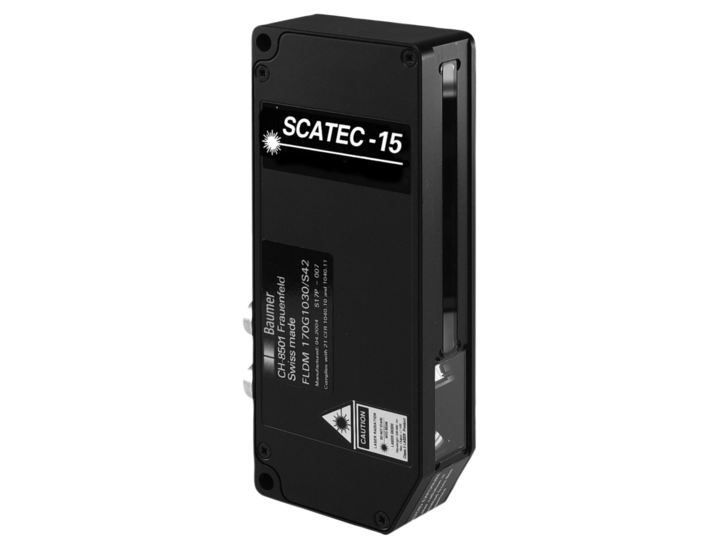

Baumer FLDM 170G1030/S42 10149139
Baumer
The Baumer FLDM 170G1030/S42 10149139 is a high-performance sensor designed for precise edge detection and object counting in fast-moving environments. It features a measuring distance of 0 to 120 mm with an optimum operating distance of 100 mm, and can handle counting rates up to 3,000,000 copies per hour. The sensor is equipped with a visible red laser line for accurate targeting and a pulsed red laser diode light source with a wavelength of 670 nm. It offers a variety of functionalities including synchronization input, direct gap detection, and sensitivity adjustments with four preset levels or custom settings. The device is built with a robust die-cast zinc housing, glass optics front, and is rated IP 54 for protection against dust and splashing water. It operates within a temperature range of 0 to +50 °C and includes safety features such as short circuit and reverse polarity protection. The sensor's outputs are managed via a push-pull circuit with adjustable pulse lengths from 0.3 to 100 ms. It also supports serial interface for ScaDiag software, enhancing its configurability and ease of use.
- Usage:
- Extension cord for Connector type M8
- Connection type (head 1):
- Connector female
- Dimension (head 1):
- M8
- Type (head 1):
- Angled
- Connection type (head 2):
- Connector male
- Dimension (head 2):
- M8
- Type (head 2):
- Straight
- Particular characteristics:
- Suitable for flexible cable carriers
- Shielding:
- Unshielded
- Material cable jacket:
- PUR halogen-free
- Length:
- 1 m
- Number of positions:
- 4-/3- pins
- Protection class:
- IP 65/67/68;
