Baumer FNCK 07N6910 11079281

Baumer FNCK 07N6910 11079281

Baumer
SKU:
11079281
Availability:
Contact us to confirm availability and lead times.
$419.40
Condition:
New
Current Stock:
Description

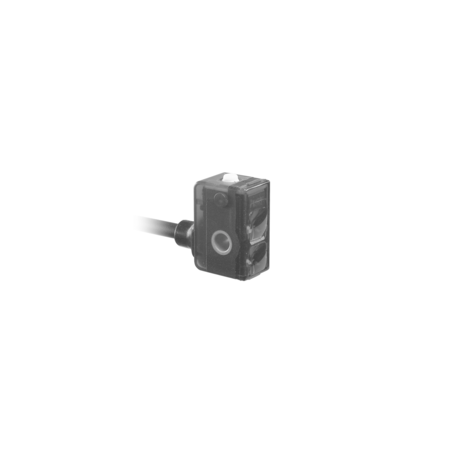

The Baumer FNCK 07N6910 11079281 is a light barrier sensor featuring a background position of 17 to 45 mm and a scanning range of 82% of the background position. It includes a pulsed red LED light source with a wavelength of 660 nm and quick response and release times of less than 0.5 ms. This sensor is equipped with both green and yellow LED indicators for light and output status, respectively. It offers a sensing distance adjustment via Teach-in, suppression of reciprocal influence, and operates with a voltage supply range of 10 to 30 VDC. The sensor has a low current consumption, with a maximum of 25 mA and a typical consumption of 20 mA. It features light/dark operate output functions, an NPN output circuit, and supports an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, with a housing made of durable plastic materials such as PMMA, MABS, and PA. The sensor is IP 65 rated for protection against dust and water, and operates within a temperature range of -20 to +50 °C. It connects via a 2-meter cable on the rear side.
Additional Information
Type:
Light barrier
Background position Sde:
17 … 45 mm
Scanning range Sa:
82% Sde
Light indicator:
LED green
Output indicator:
LED yellow
Sensing distance adjustment:
Teach-in
Suppression of reciprocal influence:
YesLight source=Pulsed red LED
Wave length:
660 nm
Response time / release time:
< 0.5 ms
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
25 mA
Current consumption typ.:
20 mA
Voltage drop Vd:
<1.8 VDC
Output function:
Light / dark operate
Output circuit:
NPN
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
8 mm
Height / length:
16.2 mm
Depth:
10.8 mm
Design:
Rectangular
Housing material:
Plastic (PMMA, MABS, PA)
Front (optics):
PMMA
Connection types:
Cable rear side, 2 m
Protection class:
IP 65
Operating temperature:
-20 … +50 °C
