Baumer FOC 500C6Y00 10146139

Baumer FOC 500C6Y00 10146139

Baumer
SKU:
10146139
Availability:
Contact us to confirm availability and lead times.
$2,251.00
Condition:
New
Current Stock:
Description

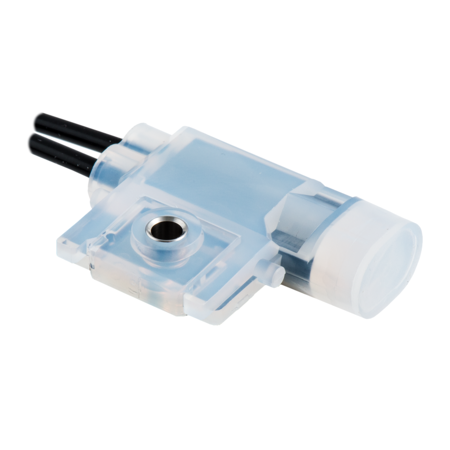

The Baumer FOC 500C6Y00 10146139 is a chemically-resistant plastic fiber optic sensor designed for liquid detection. It operates on a contact with medium measurement type with a sensing distance of 0 mm. The fiber optic head is rectangular, measuring 13 mm in width, 35 mm in length, and 9.9 mm in depth, made from PFA material. It features a 60° exit angle and can operate within a temperature range of -30 to +70 °C. The fiber optics are adaptable, allowing for shortening, and have a fixed bending radius of 20 mm. The cable jacket, also made from chemically resistant PFA, has a diameter of 2.3 mm, and the total length of the fiber optic cable is 500 cm. This model does not support an integrated or adaptable lens and is not compatible with infrared light at 1450 nm.
Additional Information
Particular characteristics:
Chemically-resistant plastic fiber optics Liquid detection
Operating principle:
Liquid-detection type
Sensing distance Tw:
0 mm
Measurement type:
Contact with medium
Fiber optic head:
Rectangular
Operating temperature:
-30 … +70 °C
Exit angle:
60°
Fiber optics can be shortened to length:
Yes
Integrated lens:
No
Adaptable lens:
No
Infrared light compatibility (1450 nm):
NoDiameter Fiber=1 mm
Width / diameter (head):
13 mm
Height / length (head):
35 mm
Depth (head):
9.9 mm
Material (head):
PFA
Bending radius (fixed):
20 mm
Cable jacket diameter:
2.3 mm
Material cable jacket:
PFA (chemically resistant)
Material (fiber optic cable):
Plastic
Length (fiber optic cable):
500 cm
Datasheet:
View
