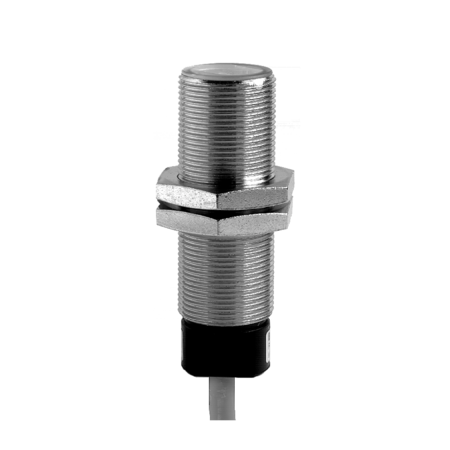

The Baumer FPAM 18N3151 10129024 is a retro-reflective sensor equipped with a pulsed red LED light source and a polarization filter. It offers a nominal range of 4 meters and an actual range of 3.2 meters. This sensor features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. It operates without sensitivity adjustment and includes suppression of reciprocal influence. The response time is less than 1 ms, ensuring quick reactions. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 22 mA and a maximum of 35 mA. The output function is dark operate with an NPN output circuit and a maximum output current of 200 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor has a cylindrical threaded design, with dimensions of 18 mm in width/diameter and 57 mm in height/length, and is made from brass nickel-plated and PC materials with a PMMA front optics. It connects via a 3-pin, 2-meter cable and operates within a temperature range of -25 to +55 °C. The sensor is rated IP 67 for protection against dust and immersion.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 3.2 m
- Nominal range Sn:
- 4 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 22 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Dark operate
- Output circuit:
- NPN
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 57 mm
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated / PC
- Front (optics):
- PMMA
- Connection types:
- Cable 3 pin, 2 m
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
