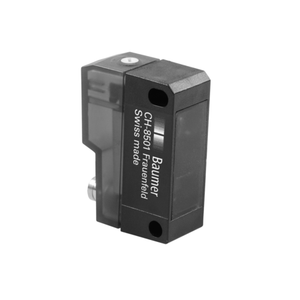

The Baumer FPDK 14N5101/S35A 11001183 is a retro-reflective sensor equipped with a pulsed red LED light source, featuring a nominal range of 7.2 meters and an actual range of 7 meters. It includes a polarization filter and a flashing light indicator for alignment or soiled lens detection. The sensor operates without sensitivity adjustment and has a wavelength of 660 nm. It is designed to suppress reciprocal influence and offers a quick response and release time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a maximum of 25 mA. It features a low voltage drop of less than 1.8 VDC and supports both light and dark operating modes with an NPN output circuit. The output current capacity is 100 mA, and it includes protections against short circuits and reverse polarity. The sensor's dimensions are 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a rectangular plastic housing made of ASA and MABS, and a PMMA front optics. It connects via an M8 4-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is rated at IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 7 m
- Nominal range Sn:
- 7.2 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
