Baumer FSE 050A1003 10258816

Baumer FSE 050A1003 10258816

Baumer
SKU:
10258816
Availability:
Contact us to confirm availability and lead times.
$262.20
Condition:
New
Current Stock:
Description

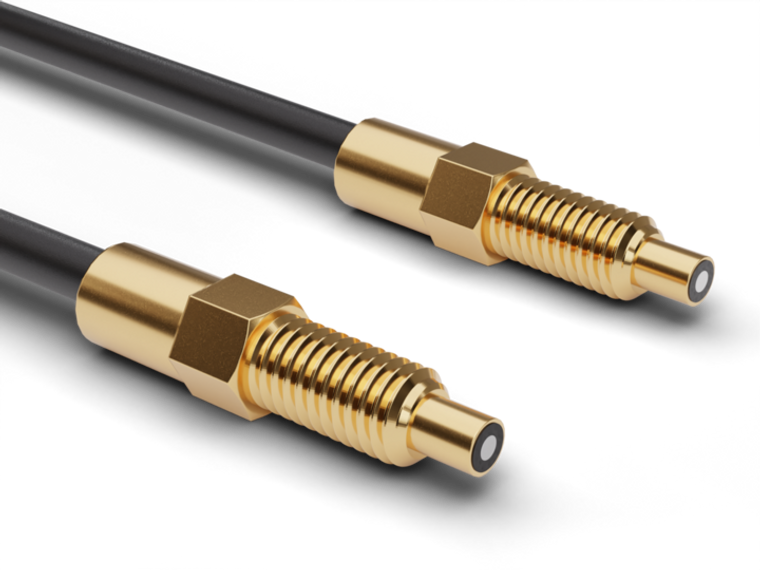

The Baumer FSE 050A1003 10258816 is a through-beam type fiber optic sensor with a cylindrical threaded head. It has an operating range of 500 mm and can operate in temperatures from -25 to +70 °C. The sensor features a 60° exit angle and is compatible with infrared light at 1450 nm. It does not have an integrated lens but supports adaptable lenses. The head dimensions are 4 mm in width/diameter and 24 mm in height/length, made from brass with an M4 x 0.7 thread. The fiber optic cable is 50 cm long, made of glass, with a 4 mm² cross-section and a PVC jacket. The fixed bending radius is 12 mm, and the mobile bending radius is 24 mm. The fiber optics cannot be shortened.
Additional Information
Operating principle:
Through-beam type
Actual range Sb:
500 mm
Fiber optic head:
Cylindrical threaded
Operating temperature:
-25 … +70 °C
Exit angle:
60°
Fiber optics can be shortened to length:
No
Integrated lens:
No
Adaptable lens:
Yes
Infrared light compatibility (1450 nm):
YesWidth / diameter (head)=4 mm
Height / length (head):
24 mm
Material (head):
Brass
Thread:
M4 x 0.7
Bending radius (fixed):
12 mm
Bending radius (mobile):
24 mm
Cable jacket diameter:
4 mm
Material cable jacket:
PVC
Fiber cross section:
4 mm²
Material (fiber optic cable):
Glass
Length (fiber optic cable):
50 cm
Datasheet:
View
