Baumer FUE 050A1001 10258780

Baumer FUE 050A1001 10258780

Baumer
SKU:
10258780
Availability:
Contact us to confirm availability and lead times.
$266.40
Condition:
New
Current Stock:
Description

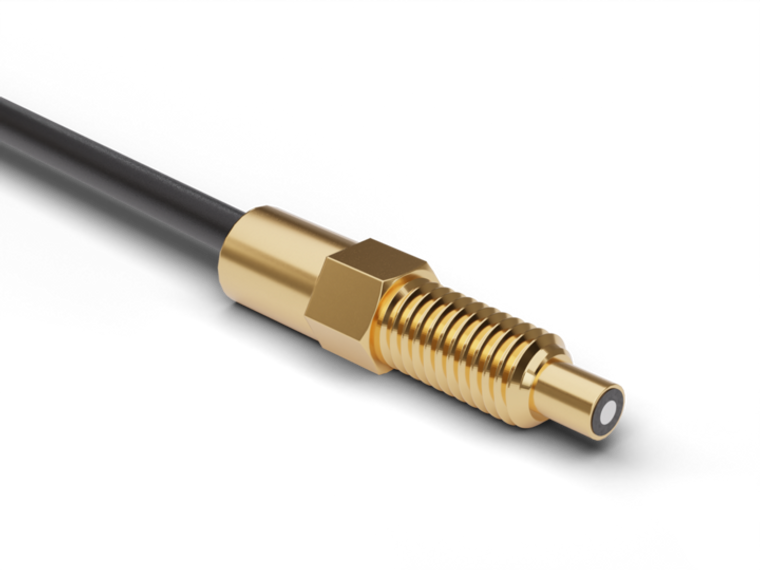

The Baumer FUE 050A1001 10258780 is a diffuse type fiber optic sensor with a sensing distance of 230 mm and a response time between 0.25 and 2.5 ms. It features a cylindrical threaded fiber optic head made of brass, measuring 6 mm in width and 30 mm in length, with an M6 x 0.75 thread. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support fiber shortening, integrated, or adaptable lenses. The fiber optic cable is 50 cm long, made of glass, with a 4 mm² cross-section and a PUR jacket. The fixed bending radius is 18 mm, and the mobile bending radius is 36 mm.
Additional Information
Operating principle:
Diffuse type
Sensing distance Tw:
230 mm
Response time / release time:
0.25 … 2.5 ms
Fiber optic head:
Cylindrical threaded
Operating temperature:
-25 … +70 °C
Exit angle:
60°
Fiber optics can be shortened to length:
No
Integrated lens:
No
Adaptable lens:
No
Infrared light compatibility (1450 nm):
YesWidth / diameter (head)=6 mm
Height / length (head):
30 mm
Material (head):
Brass
Thread:
M6 x 0.75
Bending radius (fixed):
18 mm
Bending radius (mobile):
36 mm
Cable jacket diameter:
6 mm
Material cable jacket:
PUR
Fiber cross section:
4 mm²
Material (fiber optic cable):
Glass
Length (fiber optic cable):
50 cm
Datasheet:
View
