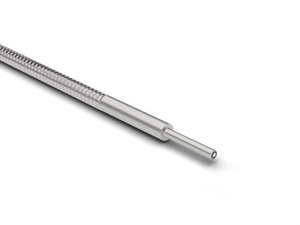

The Baumer FUE 050A2004 10258793 is a diffuse type fiber optic sensor with a smooth sensing head and a fine sleeve. It features a sensing distance of 35 mm and a cylindrical smooth fiber optic head. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm. The head dimensions are 1.5 mm in width/diameter and 25 mm in height/length, made from aluminum. The fiber optic cable is 50 cm long, has a bending radius of 7.5 mm (fixed) and 15 mm (mobile), and is made of glass with a PVC jacket. The cable jacket diameter is 2.5 mm, and the fiber cross-section is 0.5 mm². This sensor does not support shortening of the fiber optics, nor does it have an integrated or adaptable lens.
- Particular characteristics:
- Smooth sensing head Fine sleeve
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 35 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=1.5 mm
- Height / length (head):
- 25 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
