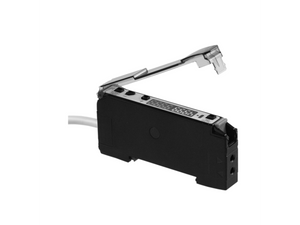

Baumer FVDK 10P66Z0/S35A 11214493
Baumer
The Baumer FVDK 10P66Z0/S35A 11214493 is a high-performance sensor equipped with a pulsed red LED light source and a wavelength of 660 nm. It features a dual 4-digit display and a yellow LED output indicator for clear status updates. This sensor offers versatile functionality with its teach-in adjustment, light/dark operation switchability, and the ability to suppress reciprocal influence. It has a fast response and release time ranging from 0.25 to 5 ms, adjustable to suit various applications. The device operates within a voltage supply range of 10.8 to 26.4 VDC and consumes a maximum of 30 mA with no load. It includes safety features such as short circuit and reverse polarity protection. The compact, rectangular design measures 10 mm in width, 33.8 mm in height, and 70.2 mm in depth, with a robust polycarbonate/ABS housing. It connects via an M8 4-pin connector and operates effectively in temperatures ranging from -20 to +55 °C. The sensor is rated IP 40 for protection against solid objects.
- Light source:
- Pulsed red LED
- Light indicator:
- 2 x 4-digit display
- Output indicator:
- LED yellow
- Adjustment:
- Teach-in
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- 0.25 5 ms (adjustable)
- Voltage supply range +Vs:
- 10.8 26.4 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate switchable
- On / off delay:
- 1 5000 ms
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10 mm
- Height / length:
- 33.8 mm
- Depth:
- 70.2 mm
- Design:
- Rectangular
- Housing material:
- Polycarbonate/ABS
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -20 +55 °C
- Protection class:
- IP 40
