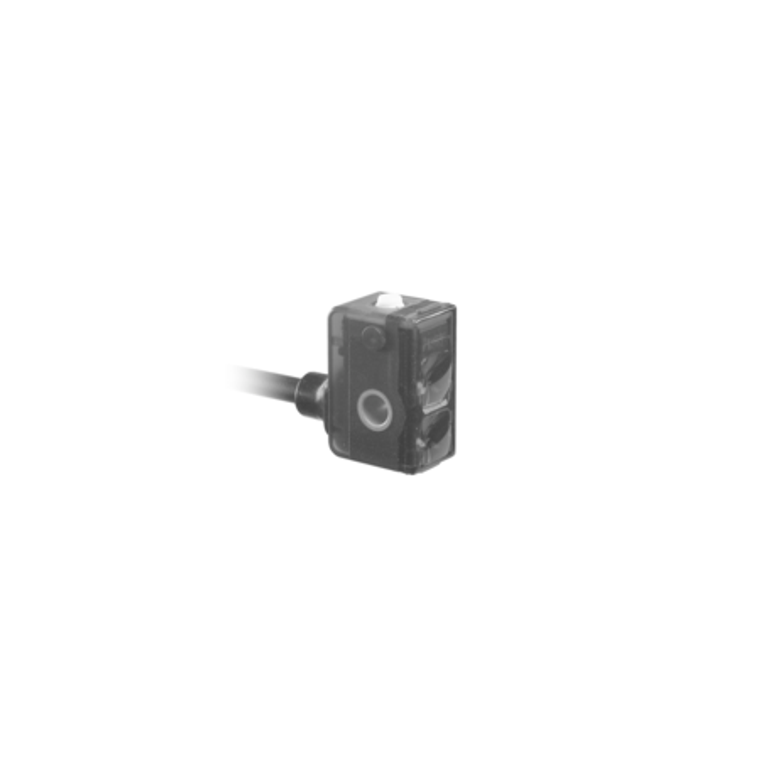

Baumer FZCK 07P6901/KS35A 10151058
Baumer
Baumer FZCK 07P6901/KS35A 10151058 is an intensity difference sensor with a sensing distance of 20 to 150 mm. It features a flashing light indicator for alignment or soiled lens detection, and LED indicators for power (green) and output (yellow). The sensor offers a teach-in sensitivity adjustment and suppression of reciprocal influence. It utilizes a pulsed red LED light source with a wavelength of 660 nm and boasts a quick response and release time of less than 0.5 ms. Operating on a voltage supply range of 11 to 30 VDC, it has a maximum no-load current consumption of 25 mA and a typical consumption of 20 mA. The output functions include light/dark operate with a PNP output circuit and a maximum output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, with a housing made of durable plastic materials like PMMA, MABS, and PA. The front optics are also PMMA. It connects via a flylead connector M8 4 pin, 200 mm in length, and is rated IP 65 for protection against dust and water, suitable for operating temperatures from -20 to +50 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- 20 150 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Protection class:
- IP 65
- Operating temperature:
- -20 +50 °C
