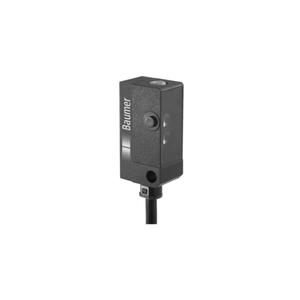

Baumer FZDK 10N5101/S35A 10132391
Baumer
$398.50
Baumer FZDK 10N5101/S35A 10132391 is an intensity difference sensor with a sensing distance of 5 to 200 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor is adjustable via a 270° potentiometer and includes suppression of reciprocal influence. It utilizes a pulsed red LED light source with a wavelength of 660 nm and boasts a fast response time of less than 1 ms. Operating on a voltage supply range of 10 to 30 VDC, it has a maximum no-load current consumption of 30 mA and a typical consumption of 20 mA. The output functions include light/dark operate with an NPN output circuit and a maximum output current of 100 mA. It offers short circuit and reverse polarity protection. The sensor's compact design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a rectangular plastic (ASA) housing and PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -25 to +65 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- 5 200 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
- Datasheet:
- View
