Description

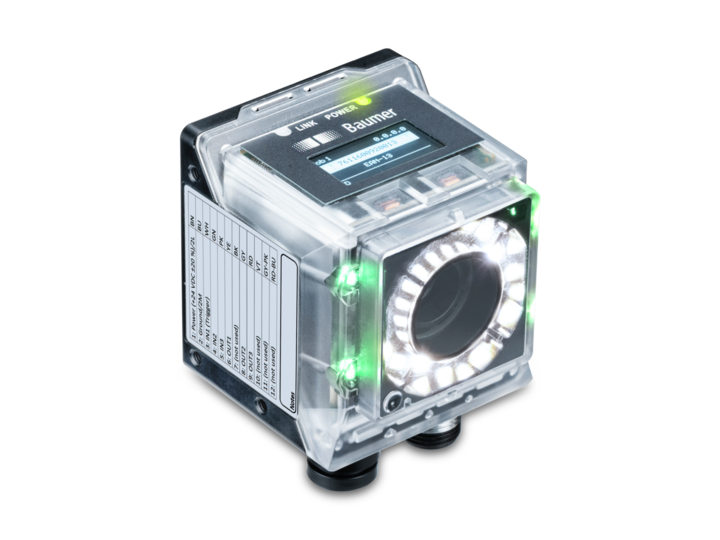

The Baumer IDC200.W06 is a robust device featuring a voltage supply range of +24 VDC ± 20%, with reverse polarity protection and a typical power supply of 5.5 W (1.2 A max at 24 V). It includes an M12, 12-pin, A-coded male electrical connection and a 1000-Mbit/s Ethernet connection via an M12, 8-pin, X-coded socket. The device also offers a USB Type C connection for HID and parametrization. Measuring 50 mm x 52 mm x 50 mm and weighing 350 g, it operates effectively in ambient temperatures from 0 to +45 °C and can be stored in temperatures ranging from -10 to +60 °C. Humidity tolerance is from 0 to 85%. It boasts an IP 67 protection class, can withstand vibrations of 1 mm p-p at 10 - 55 Hz, and shocks of 30 g / 11 ms. Links to the datasheet and operating manual are provided for detailed specifications and user guidance.
