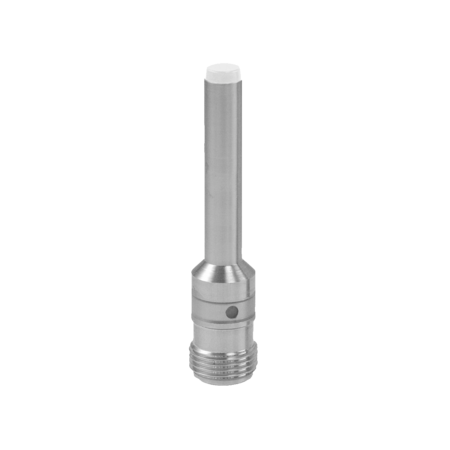

Baumer IFBR 06P33T1/S14L-9 11014576
Baumer
The Baumer IFBR 06P33T1/S14L-9 11014576 is a non-flush, hygienic design proximity sensor with a nominal sensing distance of 3 mm and a hysteresis range of 2 to 15% of Sr. It features a red LED output indicator and is equipped with a PNP break function (NC) output circuit. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 10 mA and an output current of 200 mA, which reduces to under 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's cylindrical smooth design is made from LCP for the sensing face and stainless steel 1.4404 (V4A) for the housing, measuring 6.5 mm in diameter and 55 mm in housing length. It connects via an M12 connector and can operate between -40 to +80 °C, with a higher tolerance for cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. The sensor is highly durable, rated IP 68/69K and proTect+ for protection, making it suitable for stringent hygiene requirements in food and pharmaceutical processing. It meets multiple regulatory approvals, including Ecolab, EHEDG, and various FDA and EC regulations.
- Mounting type:
- Non-flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 3 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 6.5 mm
- Housing length:
- 55 mm
- Connection types:
- Connector M12
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
