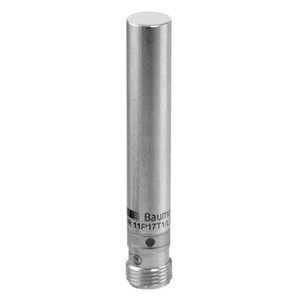

Baumer IFBR 11N17T1/L-9 11014610
Baumer
$207.70
The Baumer IFBR 11N17T1/L-9 11014610 is a flush-mounted, hygienic design proximity sensor with a nominal sensing distance of 4 mm and adjustable hysteresis between 2 to 15% of Sr. It features a red LED output indicator and operates with a switching frequency of 1 kHz. The sensor supports a voltage supply range of 6 to 30 VDC, with a maximum no-load current consumption of 10 mA. It includes an NPN make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current of 200 mA, which reduces to less than 100 mA at cleaning temperatures. Safety features include short circuit and reverse polarity protection. The sensor's cylindrical smooth design uses LCP for the sensing face and stainless steel 1.4404 (V4A) for the housing, measuring 11 mm in diameter and 54 mm in length. It connects via a 2 m PVC cable and operates within a temperature range of -40 to +80 °C, withstanding cleaning temperatures between 80 to 100 °C for up to 30 minutes per day. The sensor is rated IP 68/69K & proTect+ for high-level protection against ingress. It meets various regulatory approvals, including Ecolab, EHEDG, and multiple FDA and EC regulations, ensuring compliance with food and hygiene standards.
- Mounting type:
- Flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 11 mm
- Housing length:
- 54 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
