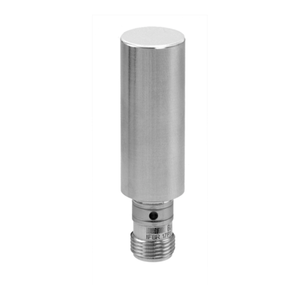

The Baumer IFBR 17P37T1/L-9 11014617 is a quasi-flush, cylindrical smooth proximity sensor designed for hygienic applications. It features a nominal sensing distance of 8 mm and a hysteresis of 2 to 15% of Sr. Equipped with a red LED output indicator, this sensor operates with a PNP break function (NC) output circuit and supports a switching frequency of 500 Hz. It requires a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 10 mA with no load. The output current is 200 mA, reducing to less than 100 mA at cleaning temperatures. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel 1.4404 (V4A) and LSR, with an LCP sensing face, ensuring durability and resistance to harsh environments. It can operate between -40 to +80 °C and withstand cleaning temperatures of 80 to +100 °C for up to 30 minutes per day. The sensor is IP 68/69K rated and meets proTect+ standards, ensuring high protection against ingress. It comes with a 2-meter PVC cable for connectivity. This sensor is compliant with multiple regulations, including Ecolab, EHEDG, and various EC and EU regulations, as well as FDA standards, making it suitable for food and pharmaceutical applications.
- Mounting type:
- Quasi-flush
- Special type:
- Hygienic design
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- Ecolab Adapted from EHEDG REGULATION (EC) 1935/2004 REGULATION (EC) 2023/2006 REGULATION (EU) 1282/2011 FDA 21 CFR § 175.300 FDA 21 CFR § 177.2600 FCN 742
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Output current (at cleaning temperature):
- < 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel 1.4404 (V4A)
- Dimension:
- 17 mm
- Housing length:
- 55 mm
- Connection types:
- Cable PVC, 2 m
- Operating temperature:
- -40 +80 °C
- Cleaning temperature:
- 80 +100 °C (30 min/day)
- Protection class:
- IP 68/69K & proTect+
