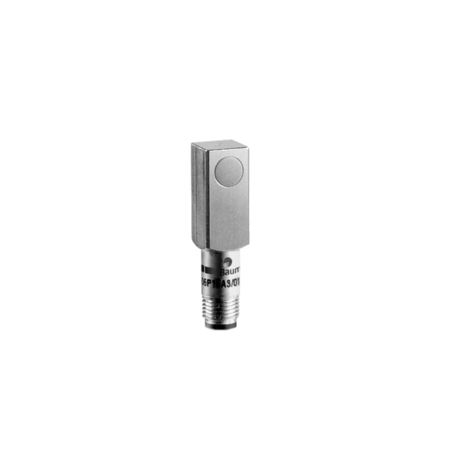

Baumer IFFM 06P35A3/O1S05L 10146215
Baumer
Flush-mounted Baumer IFFM 06P35A3/O1S05L inductive sensor with a 1 mm nominal sensing distance and adjustable hysteresis of 2-20% of Sr. Features a dual red LED output indicator, 5 kHz switching frequency, and operates on a 6-30 VDC supply with a maximum current consumption of 12 mA. Equipped with a PNP break function (NC), it supports an output current of 200 mA and includes short circuit and reverse polarity protection. The sensor's rectangular design uses LCP for the sensing face and brass nickel-plated housing, measuring 6 mm in width and 24 mm in length. It connects via an M5 connector and operates within a temperature range of -25 to +75 °C. Rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- LCP
- Housing material:
- Brass nickel plated
- Dimension:
- 6 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
