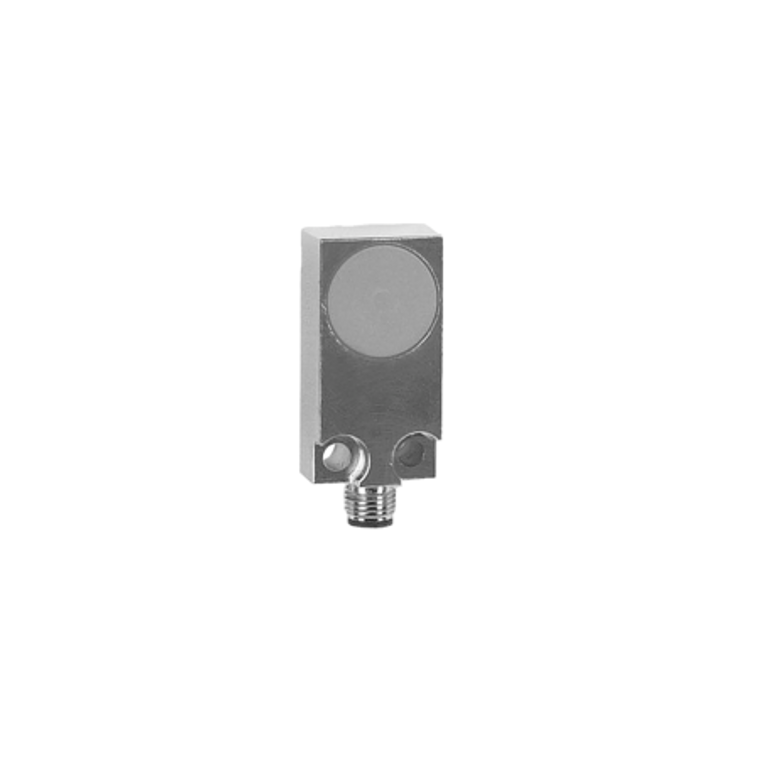

Baumer IFFM 12N37A3/S05L 10150249
Baumer
$239.10
The Baumer IFFM 12N37A3/S05L 10150249 is a flush-mounted inductive sensor with a nominal sensing distance of 4 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 2 kHz. The sensor is designed for a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 10 mA. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, it is built from PBT for the sensing face and brass nickel-plated housing, measuring 12 mm in dimension and 23.5 mm in housing length. It connects via an M5 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion in water. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFFM-12N37A3-S05L_EN_20221110_DS.pdf?mediaPK=9056334938142).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 23.5 mm
- Connection types:
- Connector M5
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
