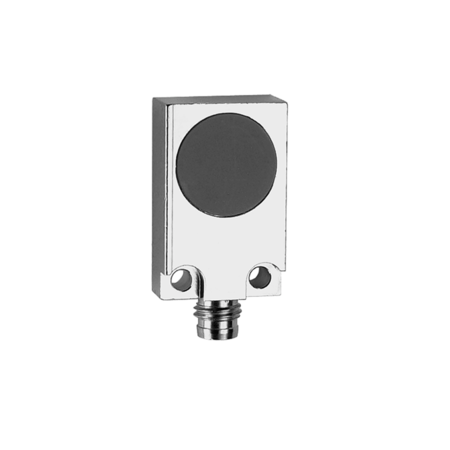

Baumer IFFM 20N17A3/S35L 10150205
Baumer
Flush-mounted Baumer IFFM 20N17A3/S35L inductive sensor with an 8 mm nominal sensing distance and adjustable hysteresis of 3-20% of Sr. Features a red LED output indicator, 500 Hz switching frequency, and operates on a 10-30 VDC supply with a maximum current consumption of 10 mA. Includes NPN normally open output, <2 VDC voltage drop, and supports up to 200 mA output current. Equipped with short circuit and reverse polarity protection. The sensor has a rectangular design with a PBT sensing face and a brass nickel-plated housing measuring 20 mm in width and 32 mm in length. Connects via an M8 connector and operates within a -25 to +75 °C temperature range. IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 8 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 32 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
