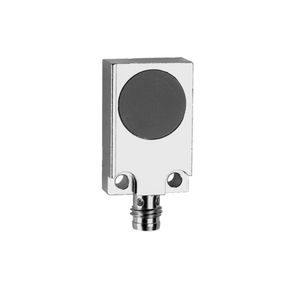

The Baumer IFFM 20P3501/S35L 10224524 is a flush-mounted inductive sensor with a nominal sensing distance of 5 mm and adjustable hysteresis of 3 to 20% of Sr. It features a 4-port LED red output indicator and operates at a switching frequency of 1 kHz. The sensor is powered by a voltage supply range of 10 to 50 VDC and has a maximum current consumption of 10 mA. It includes a PNP break function (NC) output circuit with a voltage drop of less than 3 VDC and an output current of 200 mA. Equipped with short circuit and reverse polarity protection, the sensor is designed with a rectangular, brass nickel-plated housing and a PBT sensing face. Dimensions include a 20 mm width and a 32 mm housing length, with an M8 connector type. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 5 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 4 port LED red
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 10 50 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <3 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 32 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
