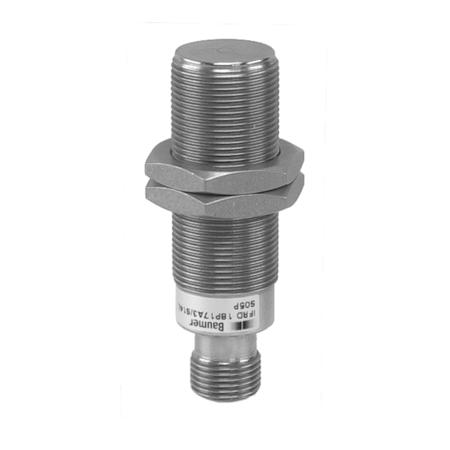

The Baumer IFRD 18P37T3/S14 10150609 is a robust proximity sensor featuring a quasi-flush mounting and a full metal housing designed for high-temperature environments. It offers a nominal sensing distance of 6 mm and operates with a hysteresis of 2 to 20% of Sr. This sensor supports a switching frequency of 100 Hz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 14 mA when no load is present. It includes a PNP break function (NC) output circuit, ensuring a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with both short circuit and reverse polarity protection, it is built to withstand operating pressures up to 20 bar. The sensor's cylindrical threaded design, stainless steel sensing face, and housing (both made of stainless steel 1.4404 (V4A)), ensure durability and reliability. It connects via an M12 connector and operates effectively in temperatures ranging from -25 to +100 °C. Certified with an IP 69K protection class, this sensor is ideal for demanding industrial applications where precision and resilience are crucial.
- Mounting type:
- Quasi-flush
- Special type:
- Full metal housing (DuroProx) High temperature
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 20 % of Sr
- Switching frequency:
- 100 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 14 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- Stainless steel 1.4404 (V4A)
- Housing material:
- Stainless steel 1.4404 (V4A)
- Operating pressure static:
- < 20 bar
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +100 °C
- Protection class:
- IP 69K
