Baumer IFRM 03N3505/CS35L 10142166
Baumer
$487.00

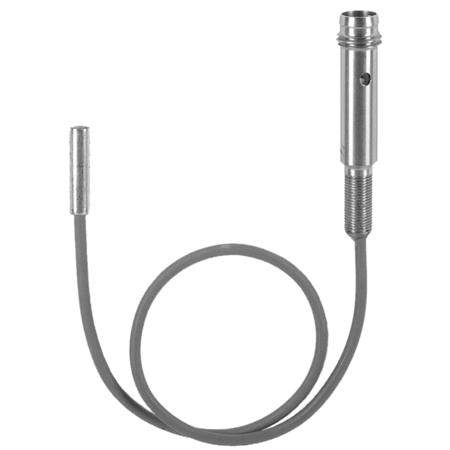

Baumer IFRM 03N3505/CS35L 10142166 is a flush-mounted inductive sensor with a nominal sensing distance of 0.8 mm and adjustable hysteresis between 2 to 20% of Sr. It features a 3 kHz switching frequency and a 3-port LED red output indicator. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 12 mA at no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and a POM sensing face. Dimensions include a 3 mm diameter and a 12 mm housing length, and it connects via an M8 connector. Suitable for operating temperatures from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 3 mm
- Housing length:
- 12 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
