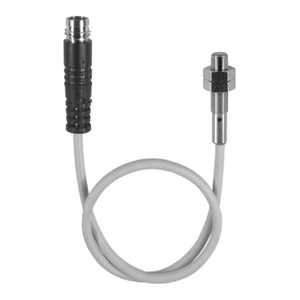

Baumer IFRM 04P15B1/KS35PL Inductive Proximity Sensor, 4 mm, PNP NO, 1 mm Sensing, IP67
BaumerThe Baumer IFRM 04P15B1/KS35PL is a cylindrical inductive proximity sensor for non-contact detection of metal objects. It provides a 1 mm nominal sensing distance with a PNP normally open (NO) output in a flush-mountable cylindrical miniature (smooth Ø4 mm) housing, rated IP67 for use in demanding industrial environments.
Key Specifications
| Series | Baumer IFRM inductive proximity sensor |
| Nominal sensing distance (Sn) | 1 mm |
| Output | PNP, make function (normally open, NO) |
| Output current | 200 mA |
| Supply voltage | 6 to 30 VDC |
| Output indicator | LED, red |
| Housing size | Ø4 mm |
| Design | Cylindrical miniature (smooth Ø4 mm) housing |
| Mounting | Flush |
| Protection | Short-circuit and reverse-polarity protected |
| Enclosure rating | IP67 |
| Operating temperature | -25 to +75 C |
| Connection | KS35PL type (see datasheet) |
Features
- Reliable non-contact detection of metal targets with no mechanical wear
- Short-circuit and reverse-polarity protection for dependable operation
- IP67-rated housing withstands dust, washdown, and industrial contamination
- Compact flush-mountable body installs cleanly in tight machine spaces
- Red LED switching indicator for fast on-machine diagnostics
Applications
Used for end-of-stroke and position sensing, part presence detection, and machine sequencing in automated assembly, packaging, material handling, and machine-tool equipment.
Automation Distribution is an authorized Baumer distributor. Order the Baumer IFRM 04P15B1/KS35PL online, or contact our technical team for help selecting sensing distance, output type, or connection for your application.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 0.8 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- POM
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 22 mm
- Connection types:
- Flylead connector M8
- Tightening torque max.:
- 1.8 Nm (Front: 1,2 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
