Description

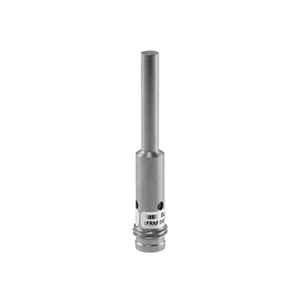

The Baumer IFRM 04P17A1/PL 11082448 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when no load is present. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. Dimensions include a 4 mm diameter and a 25 mm housing length, and it comes with a 2-meter cable connection. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
