Baumer IFRM 04P17A3/S35L 11082444
Baumer
$163.60

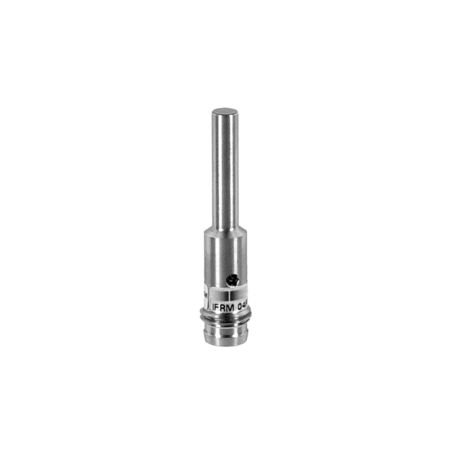

The Baumer IFRM 04P17A3/S35L 11082444 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a 3-port red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA when no load is present. It includes a PNP make function (NO) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical smooth stainless steel housing and an LCP sensing face. It measures 4 mm in diameter and 36 mm in housing length, and connects via an M8 connector. Suitable for operating temperatures ranging from -25 to +75 °C, it is rated with an IP 67 protection class, ensuring robust performance in diverse environments. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-04P17A3-S35L_EN_20221109_DS.pdf?mediaPK=9055902892062).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 4 mm
- Housing length:
- 36 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
