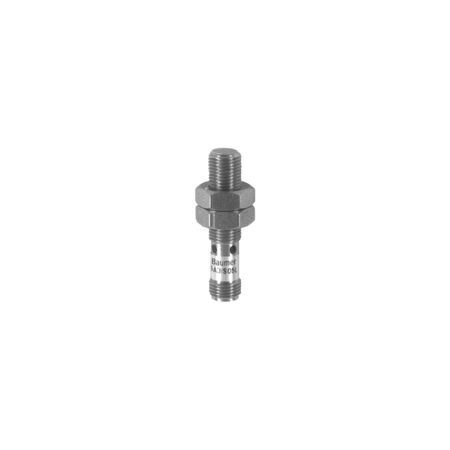

Baumer IFRM 05N15A3/S05L 10144454
Baumer
$190.90
The Baumer IFRM 05N15A3/S05L 10144454 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1 mm and a hysteresis of 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 5 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and has a maximum no-load current consumption of 12 mA. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, it is built from stainless steel with an LCP sensing face. The sensor measures 5 mm in diameter and 24 mm in housing length, and it connects via an M5 connector. It can be tightened with a maximum torque of 2 Nm (front: 1.4 Nm) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
