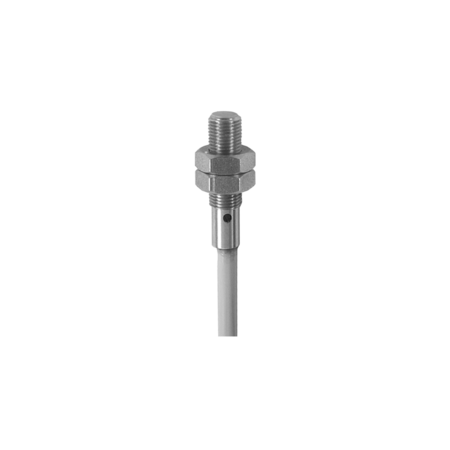

The Baumer IFRM 05N17A3/PL 11082464 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis between 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor is powered by a voltage supply range of 6 to 30 VDC and consumes a maximum of 12 mA with no load. It includes an NPN make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current of 100 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded housing made of stainless steel and an LCP sensing face. Dimensions include a 5 mm diameter and a 20 mm housing length, with a 2-meter cable connection. It can be securely tightened with a maximum torque of 2 Nm (Front: 1.4 Nm) and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion. For more details, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05N17A3-PL_EN_20221109_DS.pdf?mediaPK=9055931072542).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1.6 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- LCP
- Housing material:
- Stainless steel
- Dimension:
- 5 mm
- Housing length:
- 20 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 2 Nm (Front: 1,4 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
