Description

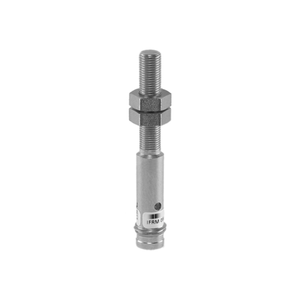

Baumer IFRM 05N37A1/PL 11082477 is a flush-mounted inductive sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis of 2 to 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 3 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with both short circuit and reverse polarity protection, this sensor is designed with a cylindrical threaded stainless steel housing and an LCP sensing face. Dimensions include a 5 mm diameter and a 25 mm housing length, and it connects via a 2-meter cable. The sensor can be tightened with a maximum torque of 2 Nm (front: 1.4 Nm) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and water ingress.
