Description

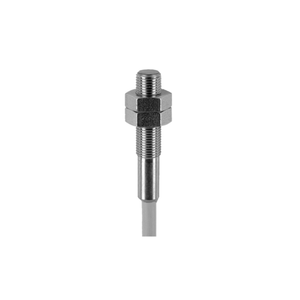

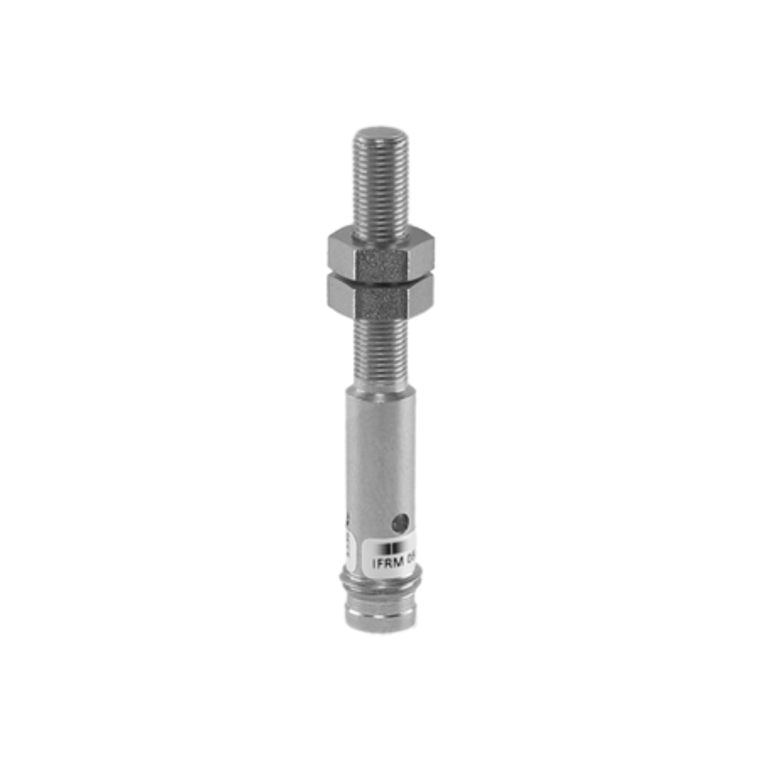

The Baumer IFRM 05N37A1/S35L 11082481 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 1.6 mm and adjustable hysteresis of 2 to 20% of Sr. It features a 3 kHz switching frequency and a 3-port LED red output indicator. The sensor operates on a voltage supply range of 6 to 30 VDC, with a maximum current consumption of 12 mA at no load. It includes an NPN break function (NC) output circuit, with a maximum output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. Its sensing face is made of LCP, while the housing is constructed from stainless steel, measuring 5 mm in diameter and 45 mm in length. It connects via an M8 connector and requires a maximum tightening torque of 2 Nm. The operating temperature range is -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IFRM-05N37A1-S35L_EN_20221109_DS.pdf?mediaPK=9055938445342).
