Baumer IFRM 12N33T1/S14L 11016678
Baumer

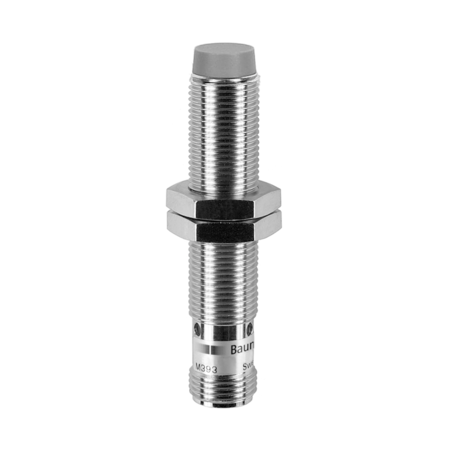

Baumer IFRM 12N33T1/S14L 11016678 is a non-flush, cylindrical threaded proximity sensor designed for outdoor use, featuring a nominal sensing distance of 6 mm and a hysteresis range of 2 to 15% of Sr. It includes a red LED output indicator and operates at a switching frequency of 2 kHz. The sensor supports a voltage supply range of 6 to 30 VDC, with a maximum no-load current consumption of 10 mA. It utilizes an NPN break function (NC) output circuit, with a maximum output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. It is constructed with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 60 mm in length. The sensor connects via an M12 connector and requires a maximum tightening torque of 15 Nm. It operates within a temperature range of -40 to +80 °C and meets IP 67 protection standards.
- Mounting type:
- Non-flush
- Special type:
- Outdoor design
- Nominal sensing distance Sn:
- 6 mm
- Hysteresis:
- 2 15 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -40 +80 °C
- Protection class:
- IP 67
- Datasheet:
- View
