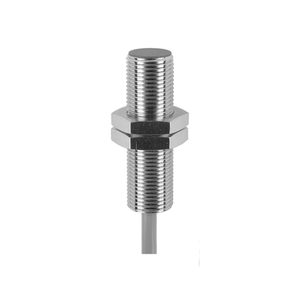

The Baumer IFRM 12N3702/L 10229702 is a flush-mounted inductive sensor with a nominal sensing distance of 4 mm and adjustable hysteresis between 3% and 20% of Sr. It features a red LED output indicator and operates at a switching frequency of 2 kHz. The sensor is designed for a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 10 mA. Its output circuit is an NPN break function (NC) with a maximum output current of 200 mA. The sensor includes short circuit and reverse polarity protection. It has a cylindrical threaded design with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 40 mm in length. The connection is facilitated via a 2-meter cable. It can be tightened with a maximum torque of 15 Nm (10 Nm at the front) and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (Front: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
