Description

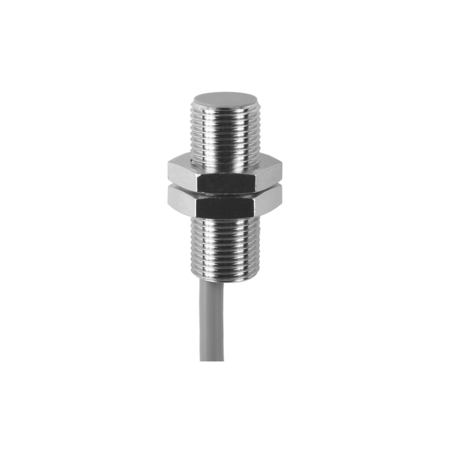

The Baumer IFRM 12N37X1/L 11096375 is a cylindrical threaded proximity sensor with a flush mounting type and a nominal sensing distance of 4 mm. It features a red LED output indicator and is equipped with an NPN break function (NC) output circuit. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 10 mA with no load. It supports a maximum output current of 200 mA and includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is constructed from PBT. It has a dimension of 12 mm in diameter and a housing length of 30.4 mm. The connection is facilitated via a 2-meter cable, and it can handle a maximum tightening torque of 15 Nm. This sensor is ATEX 3D certified, has a switching frequency of 2 kHz, and offers a voltage drop of less than 2 VDC. It is designed to withstand demanding environments with a protection class of IP 67.
