Description

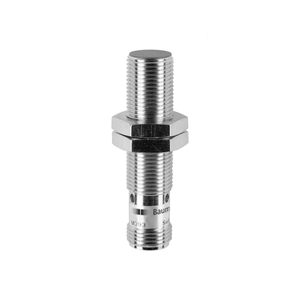

The Baumer IFRM 12P1701/S35L 10224126 is a flush-mounted inductive sensor with a nominal sensing distance of 4 mm and adjustable hysteresis between 3% and 20% of Sr. It features a 3-port LED red output indicator and operates at a switching frequency of 2 kHz. The sensor is powered by a voltage supply range of 6 to 36 VDC and has a maximum no-load current consumption of 10 mA. It includes a PNP make function (NO) output circuit with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, this sensor is built with a cylindrical threaded design, a PBT sensing face, and a brass nickel-plated housing. It measures 12 mm in diameter and 50 mm in housing length, and connects via an M8 connector. The sensor can be tightened with a maximum torque of 15 Nm (Front: 10 Nm) and operates within a temperature range of -25 to +75 °C. It is rated IP 67 for protection against dust and immersion.
