Baumer

Baumer IFRM 12P1702/L/0300

(No reviews yet) Write a Review
SKU:
10167401-Baumer
MPN:
IFRM 12P1702/L/0300
Condition:
New
Connectors:
M12/5-pin male connector
Operating voltage:
24 VDC
Maximum flash duration:
20 ms
Power consumption:
approx. 25 W (steady light) approx. 47 W (flashed light)
Construction design:
ring light
Dimensions:
141 mm x 130 mm x 44 mm
Inner diameter:
80 mm
Dimensions luminous area:
inner diameter 87 mm outer diameter 121 mm
Material of cover glass:
PMMA (acrylic glass)
Material of housing:
aluminum (anodized, black)
Weight:
? 750 g
Datasheet:
View
$129.00

Description

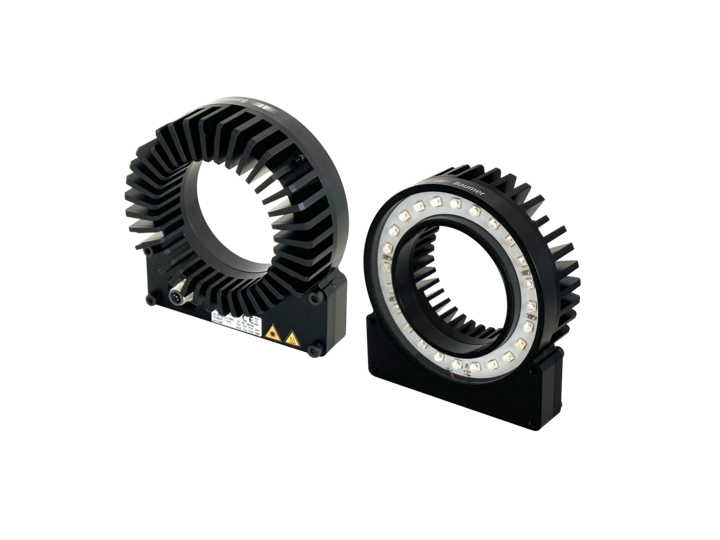

The Baumer IFRM 12P1702/L/0300 is a high-performance ring light featuring an M12/5-pin male connector and operates on a 24 VDC power supply. It has a maximum flash duration of 20 ms and consumes approximately 25 W in steady light mode and 47 W in flashed light mode. The light's construction is designed as a ring with dimensions of 141 mm x 130 mm x 44 mm and an inner diameter of 80 mm. The luminous area has an inner diameter of 87 mm and an outer diameter of 121 mm. It is constructed with a PMMA (acrylic glass) cover and an anodized black aluminum housing, weighing less than 750 g.
